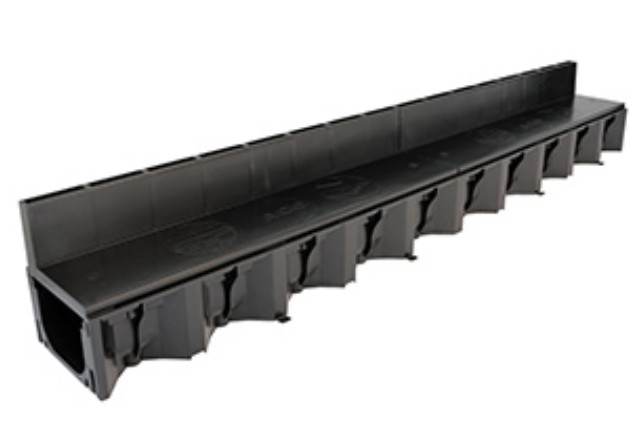

The Aco Drainage A15 HexDrain Brickslot is a 100mm wide channel drain designed for block and brick paving. Its narrow slot blends in with paving joints, creating a clean, low-profile finish. The channel comes complete with an offset slotted grating, ideal for block paving up to and including 60mm
It’s ideal for driveways, patios and other paved areas where appearance matters. Despite its subtle design, it provides efficient surface water drainage. Brickslot is suitable for pedestrian and vehicle traffic up to Load Class A 15.
The high quality Brickslot channels clip together, allowing for quick and easy installation. The channel is made from recycled polypropylene, making it lightweight, durable and easy to handle. Brickslot is simple to install and helps reduce the risk of standing water without disrupting the look of your paving.
- Offset slot enables drainage location adjacent to walls and door thresholds
- Discreet 10mm inlet slot tapered to prevent blockage
- Debris guard stops the ingress of sand and cement between units during installation
- CE Marked and fully certified to Load Class A 15 BS EN 1433:2002
- Compliant with Part M of the Building Regulations for England and Wales and Section 4 of the Scottish Building Standards
- Offset grating ideal for use with block paving up to 60mm
Aco Drainage A15 HexDrain Brickslot Specifications:
- Length – 1000mmm
- Width – 125mm
- Depth – 148mm
- Invert – 143mm
